Accurate Melting Point Determination for Pharmaceutical & Research Laboratories

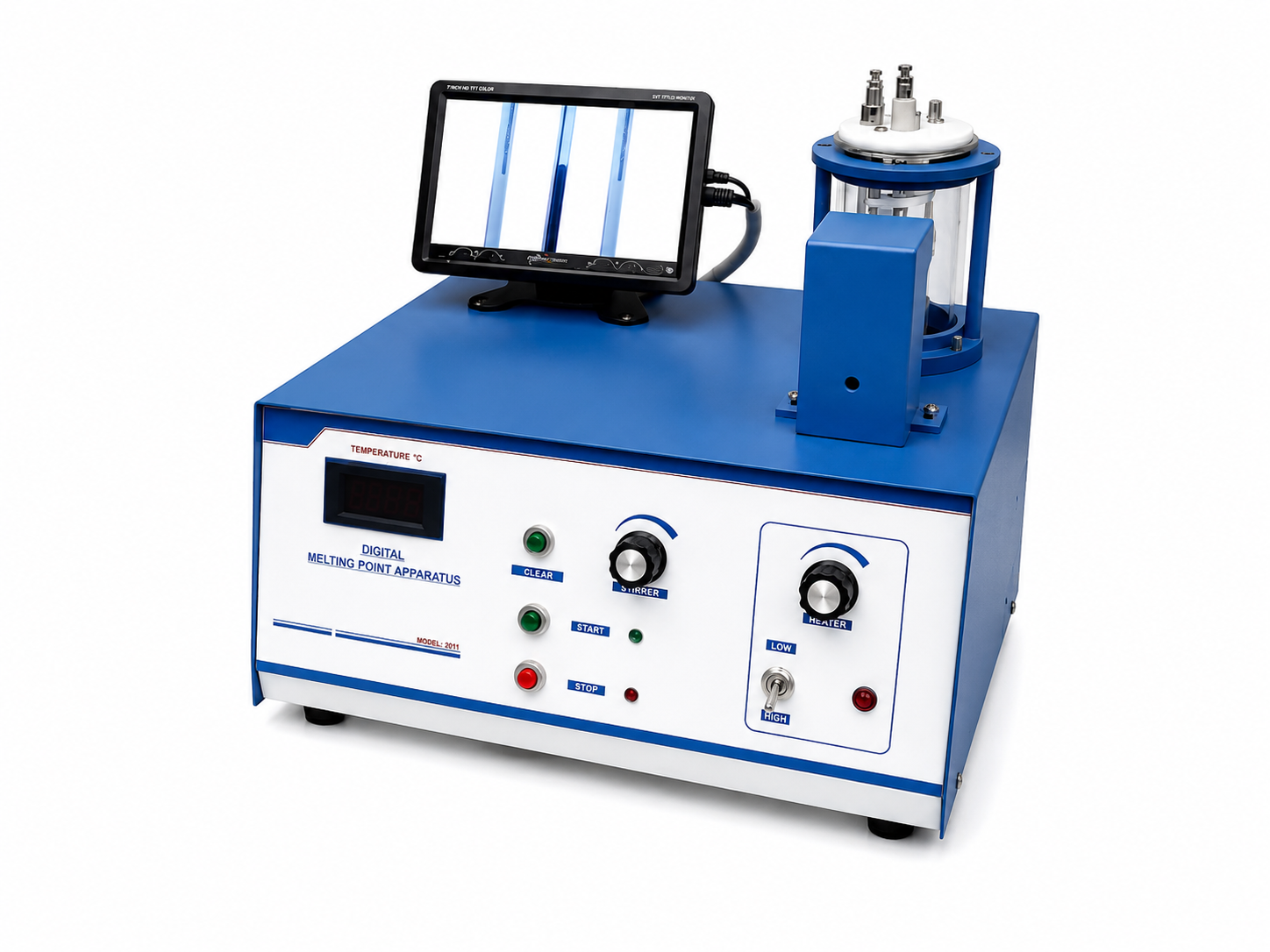

The RSolv Melting Point Apparatus is designed for precise determination of the melting point and melting range of solid samples. Featuring a high-resolution viewing camera with TFT display, a digital LED temperature display, and a silicon oil bath with an in-built magnetic stirrer, the instrument ensures accurate, uniform, and reliable melting point analysis for quality control, research, and routine laboratory applications.
The Melting Point Apparatus enables laboratories to observe sample melting in real time through a TFT display while providing precise temperature control and uniform heating for consistent and repeatable results.
Key Features
- High-resolution TFT display with capillary viewing camera
- Accurate melting point and melting range determination
- Digital 4-digit LED temperature display
- Temperature resolution up to 0.1°C
- Silicon oil bath for uniform heating
- In-built magnetic stirrer
- User-friendly operation with Start and Stop controls
- Designed for precise and repeatable measurements
Technical Specifications
| Specification | Details |
|---|---|
| Temperature Range | 0–300°C |
| Display | Display TFT Screen with High-Resolution Camera & 4-Digit LED Display |
| Temperature Resolution | 0.1°C (Model 2935/935), 1°C (Model 934) |
| Capillary Tube | 75 mm long, 0.8–1.1 mm ID |
| Oil Bath Capacit | 200 ml Silicon Oil Bath |
| Stirrer | Stirrer In-built Magnetic Stirrer |
| Power Supply | 230V AC ±10%, 50 Hz |
| Dimensions | 370 × 290 × 290 mm |
| Weight | Approx. 12 kg |
